Reprogram Flash (C++ Version)

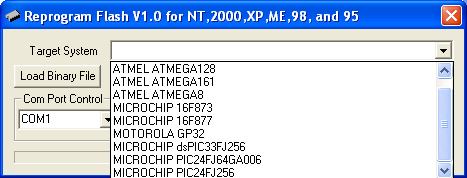

Version 1.0 – setup_reprog_flash_v10.exe

(Also supports ATMega32 – not shown in list)

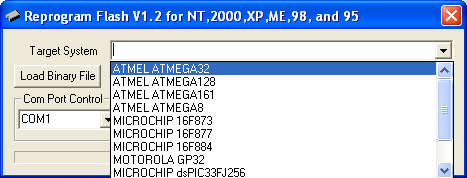

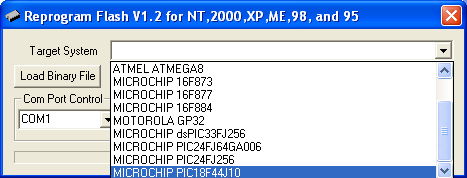

Version 1.2 (executable only) – reprogflash_v12.exe

Reprogram Flash CS (C-Sharp Version)

Please note that to run this program, the Microsoft .NET 4.0 Framework must be installed. If an error is presented during installation, download and install this prerequisite from Microsoft here.

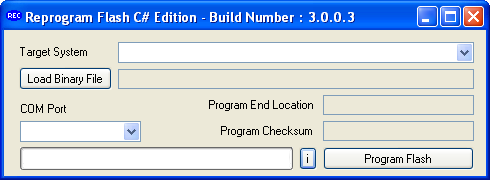

Version 3.0.0.3 – ReprogramFlash_CS_3_0_0_3.zip

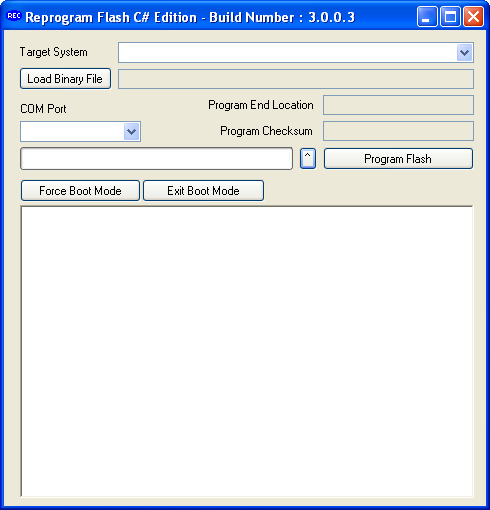

Added Force Boot Mode and Exit Boot Mode buttons just below the normal window area. Either resize the window or press the ‘I’ button to see the extra buttons. For systems equipped with a bootloader that can be entered serially, the Force Boot Mode button may be used to enter the “Bootloader” mode, and the Exit Boot Mode button can be used to reset and run the programmed application after the bootload process is complete.

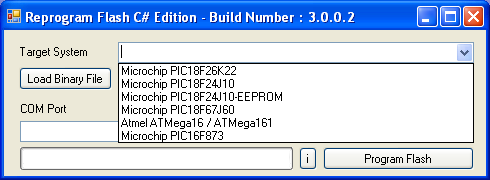

Version 3.0.0.2 – ReprogramFlash_3_0_0_2.zip

Usage :

1. Connect the targets RS-232 port to a serial port on a Windows PC using a DB9 cable.

2. Put the target system into reprogramming mode

3. On a Windows PC, run the program "reprogflash.exe"

4. In the dropdown box labeled target system, choose the processor type corresponding to the target.

5. Choose the com port number corresponding to the PCs port being used (step 1)

6. Press the 'Load Binary File' button and choose the file you wish to install into the control (e.g. mytest.s19)

7. Press the 'Program Flash' button and wait for the message "Upload Complete".

8. Press OK, power down the control, and power it back up with no buttons pressed.

9. Verify that the version number indicated by the target system has changed to reflect the new software.

Prior version of this page can be found here.
